Name: .96 Inch Active Area OLED Screen Kit for Brook Gen 5/5X/W and GP2040-CE
Brand: Focus Attack
SKU: FA-OLED-DIYKIT
Price: 12.95 USD
Availability: InStock

.96 Inch Active Area OLED Screen Kit for Brook Gen 5/5X/W and GP2040-CE

$12.95

(USD)

Brand

Focus Attack

SKU

FA-OLED-DIYKIT

Weight

2.00 Ounces

Availability

Ships within 1-2 business days

Maximum Purchase:

4 units

Shipping

Calculated at Checkout

Description
Warranty

Harness may not be compatible with some unlisted PCBs

Please note that the harness provided in this kit is designed to address the order of the 4 input pins on the Fightstick PCB and OLED, which may have their SDA and SCL pins switched. Other PCBs not listed for compatibility may have their pins in the correct order and thus will require a different harness.

The .96 INCH Active Area OLED Screen Kit for Brook Gen 5/5X/W and GP2040-CE is designed those building DIY Fightsticks and would appreciate the Always-Active Input display functionality offered by modern fighting game PCBs.

Deep Black. Bright White Text and Icon Readability. Sharp Presentation

For those familiar with OLED, you may know that this display format offers rich black and bright color, given that the display only lights up where it's needed, as opposed to LED which requires light behind it. With this technology, you'll receive a sharp white output to see information such as:

Stick setting
Tournament Mode
SOCD Setting
Button Input or Layout
Console Mode
Splash screen

This list of visuals will depend on the features of your chosen PCB.

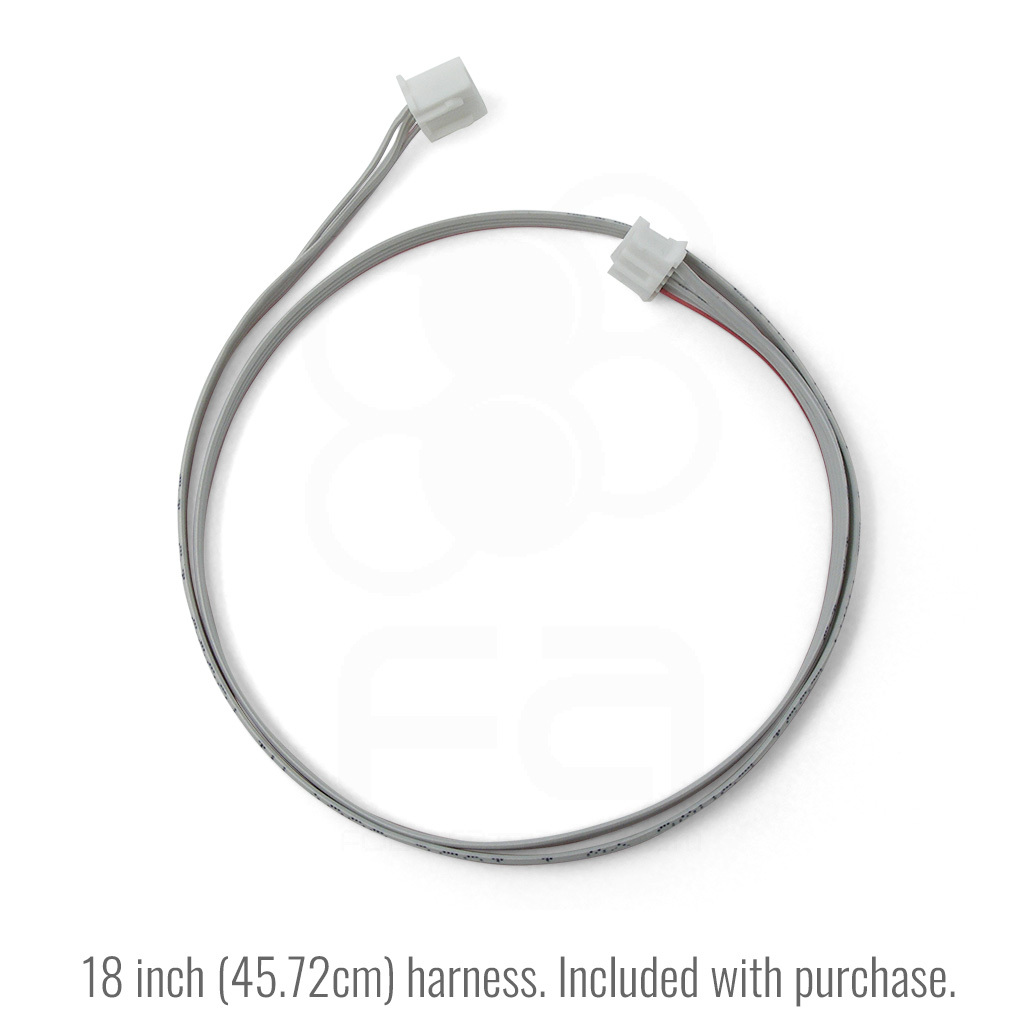

18 Inch Harness Included

The 18 inch (45.72cm) harness allows you to place the PCB further away from the OLED if necessary. It is also designed to address the PCB to OLED pinout differences with the SDA data and SCl clock pins. Those wires are swapped to accomodate the pinouts on each device.


18-inch harness comes with kit	Harness swaps SDA and SCL pinout for compatibility

Specs, Dimensions and Compatibility

Below are specifications of the OLED screen.

Resolution: 128 x 64, View angle: > 160°, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W
Embedded Driver IC: SSD1306. Communication: I2C/IIC Interface.
4-Pin Male Connector

Ground (GND)
Power (VCC, 3.3v~5v)
Data line (SDA)
Clock Line (SCL)

Dimensions

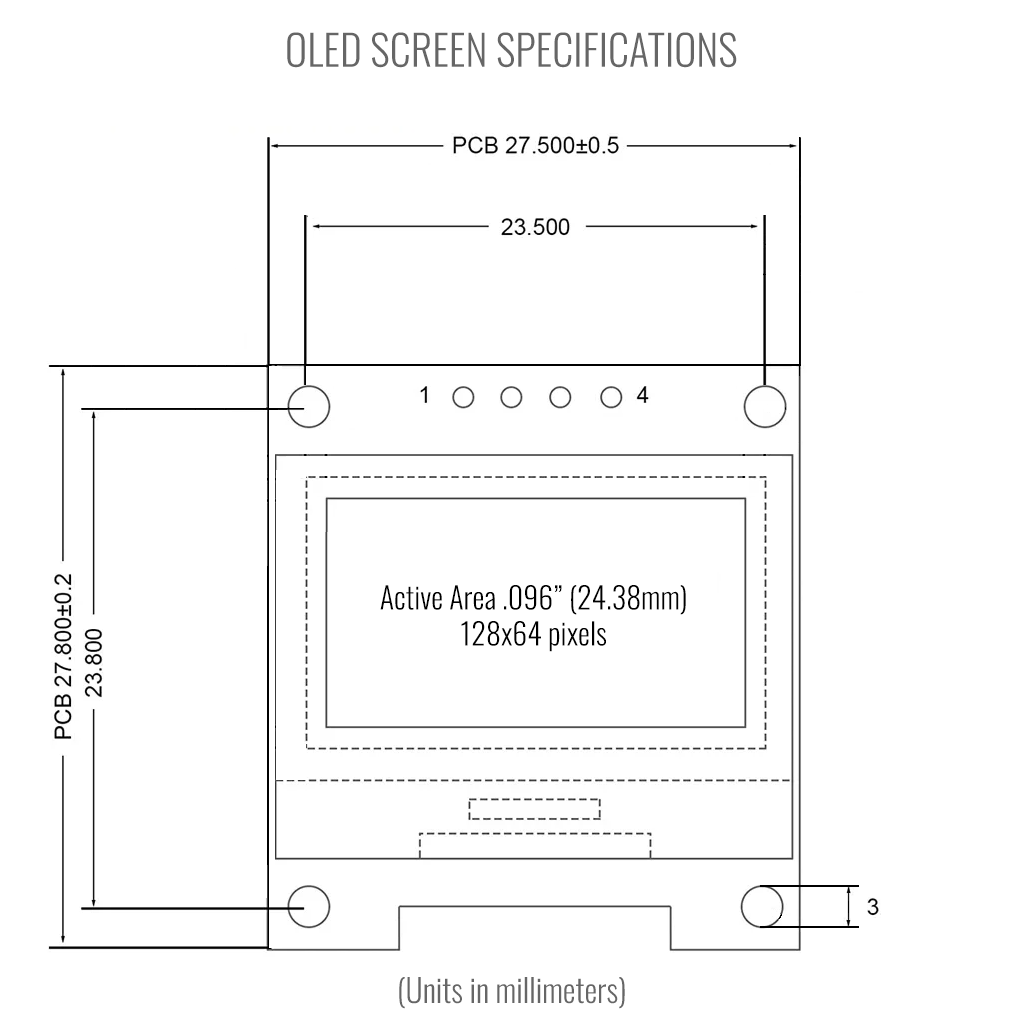

OLED Dimensions (Units in Millimeters)

Fighting Board PCB Compatibility

Note that more PCBs may be compatible, but were not yet tested with the device. This will depend on the pinout of the SCL and SDA as the provided harness has these pins swapped to pin 3 and 4 respectively.
