Sanwa JL-SRB Shaft with Rubber Bearing

Sanwa returns with a new way to quiet your gameplay. The JL-SRB consists of bearings that contribute to a smoother operation, along with rubber shaft and actuator that are designed to reduce the impact noise typically created upon contact with your restrictor plate.

Recommended for use with JLX-TPML. Compatible with Sanwa JLF, and JLX

Sanwa recommends that the JL-SRB is installed in the SANWA JLX-TPML-8YT-SK Adjustable Silent Leaf Microswitch Joystick for optimal noise dampening. However the shaft kit is also compatible with the Sanwa JLX and JLF series as well, offering improvements across all aforementioned models. It is important to note that this product is not designed for other brand joystick levers.

What's Included?

• Dedicated Shaft
• Dedicated Bearing Mechanism, Lower Part of P.S. Pipe
• 2 Washers
• 2 E-Rings

Important Maintenance Notes

• Due to the use of rubber components, the joystick's operation may feel stiffer over time, especially in certain environments.
• To maintain smooth operation, apply a lubricant like Ichi-Nen Chemicals' Clear Lubricant Dry Type NX205 to the rubber surfaces.
• Avoid applying lubricant directly to the switch, as this may cause malfunctions.
• For optimal lubrication, either spray the lubricant onto the rubber surfaces while the joystick is assembled, or disassemble the joystick and apply lubricant directly to the rubber bearing.
• Annual lubrication is recommended.

Installation

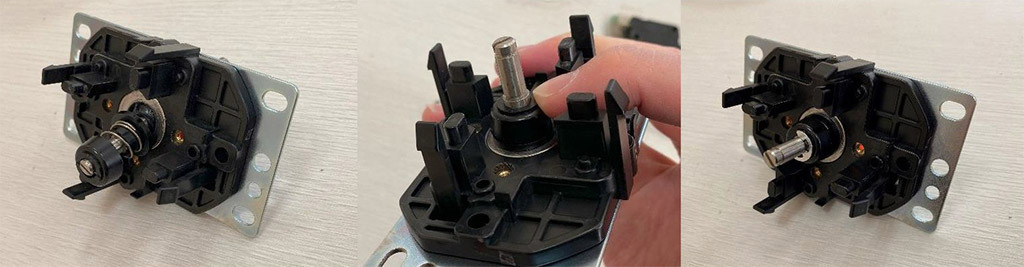

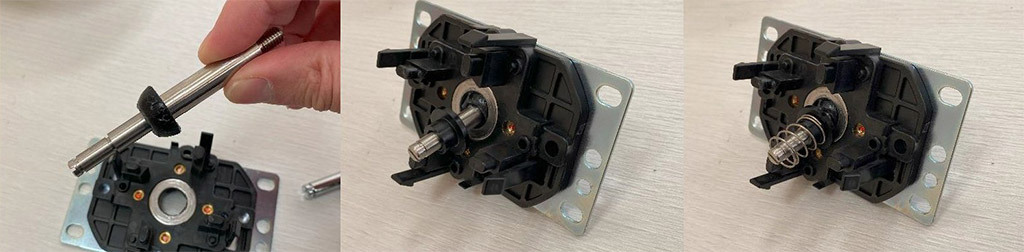

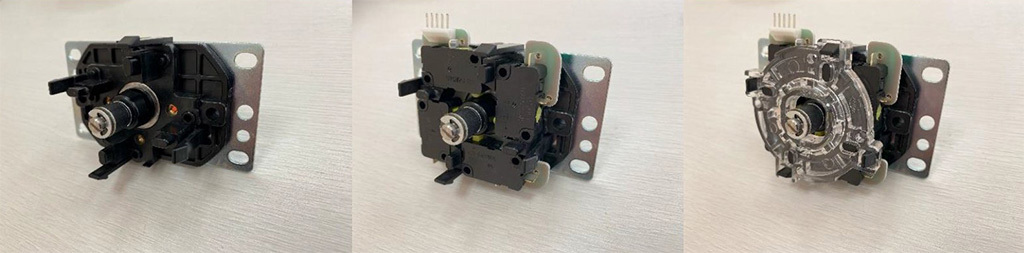

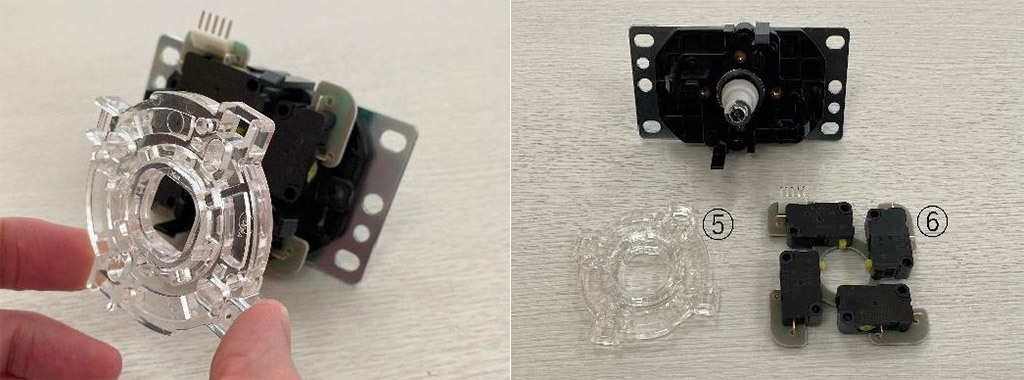

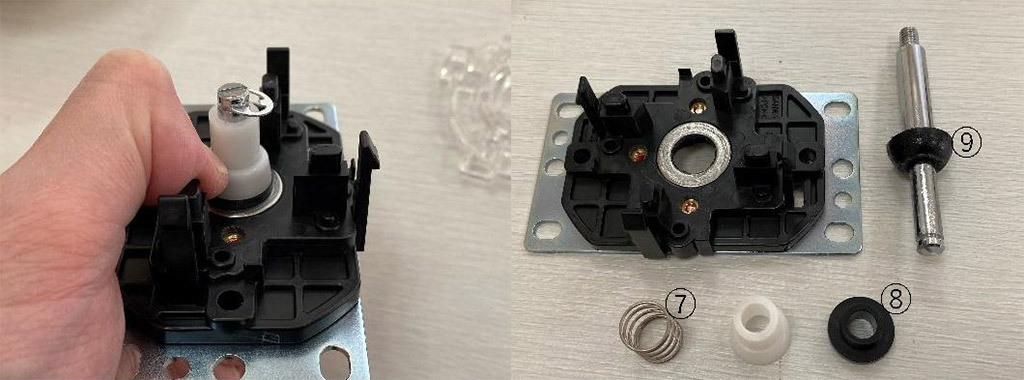

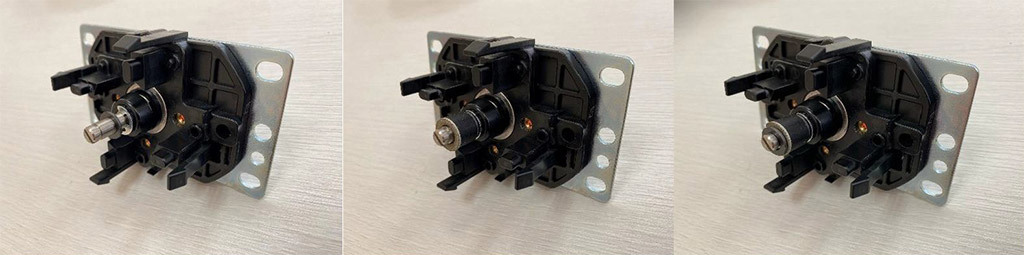

Product Contents Dedicated Shaft (#1) Dedicated Bearing Mechanism, Lower Part of P.S. Pipe (#2) 2 Washers (#3) 2 E-Rings (#4) Installation Steps and Visual Guide Step 1 Remove the guide plate (#5) from the joystick. Remove the switch part (#6) from the base. Step 2 While holding the PS pipe, remove the e-ring and then the spring (#7), SP pipe (#8), shaft, and bearing (#9). Caution: The e-ring and spring may spring out during removal. Step 3 Attach the bearing (#9) to the shaft (#1) and insert them into the base. Attach the PS pipe (#8) and spring (#7). Step 4 Attach the lower part of the PS pipe (#2) and secure it with the e-ring (#4), ensuring it's seated properly in the shaft's recess. Step 5 Install the washer (#3), rubber bearing (#2), and another washer (#3) in sequence. Step 6 Secure the assembly with the e-ring (#4). Reattach the switch part (#6) and guide plate (#5). Important Maintenance Notes Due to the use of rubber components, the joystick's operation may feel stiffer over time, especially in certain environments. To maintain smooth operation, apply a lubricant like Ichi-Nen Chemicals' Clear Lubricant Dry Type NX205 to the rubber surfaces. Avoid applying lubricant directly to the switch, as this may cause malfunctions. For optimal lubrication, either spray the lubricant onto the rubber surfaces while the joystick is assembled, or disassemble the joystick and apply lubricant directly to the rubber bearing. Annual lubrication is recommended.
